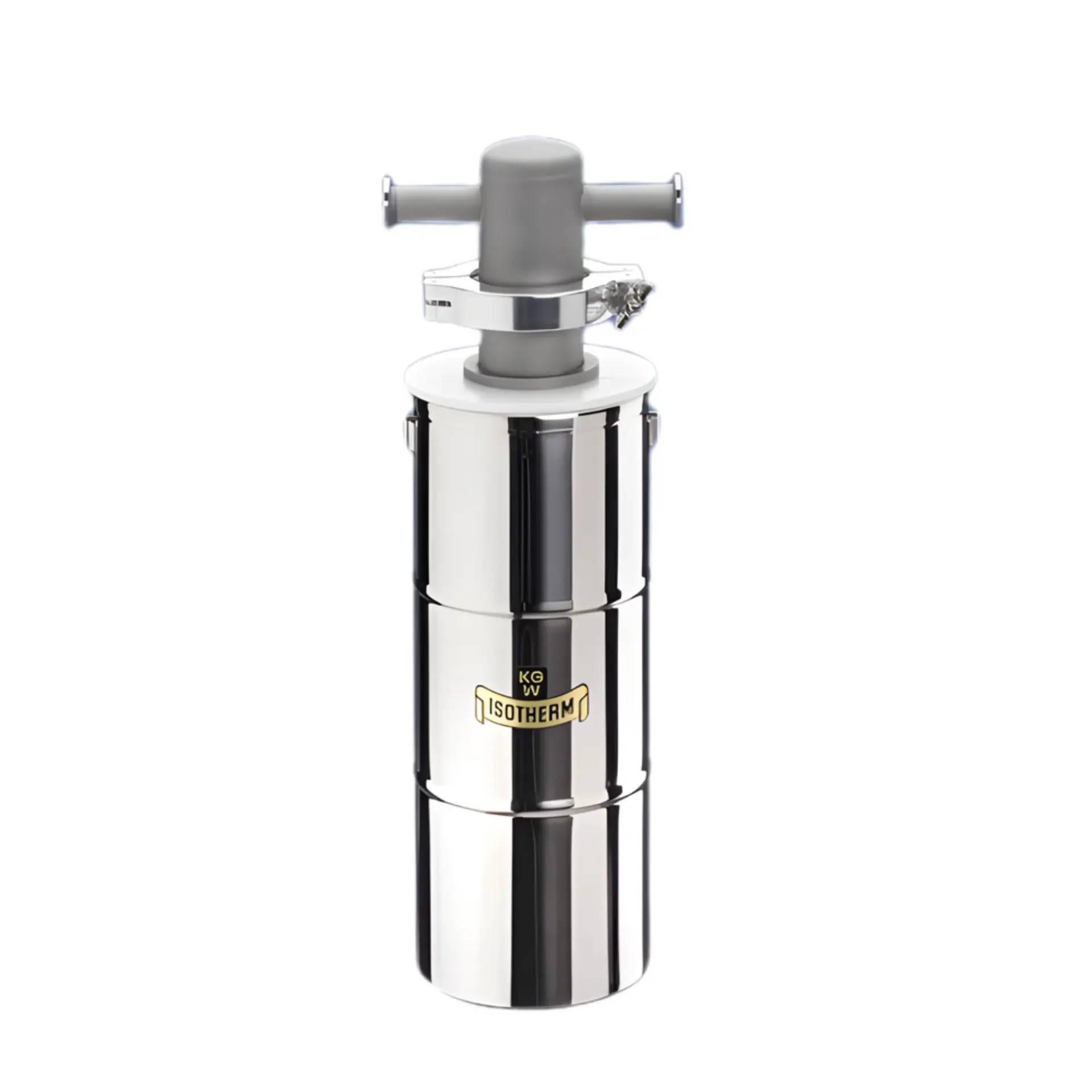

Type KF54V-K16-Z-DSS2000

Technical data sheet

Cold trap catalog

Application

• Gas purification by condensation, e.g. in vacuum systems

Advantages

• made of stainless steel 1.4301 (1.4404 on request)
• High thermal resistance
• High thermal resistance
• Simple, cost-effective design
• Quick change possible
• two-part
• Pressure range: Vacuum up to 10-6 mbar, pressure up to 3 bar overpressure

Executions

• KF NW16 = small flange
• KF NW25 = small flange
• Special dimensions
• Special connections

Two-part cold trap

A special design are two-part cold traps in the standard version, with a KF NW 50 flange as the connecting part. With this cold trap, the condensate compartment can be separated from the upper part of the cold trap. This makes it very easy to remove the condensate and clean the cold trap. This version is also suitable for fixed installation of the cold trap in an appliance, as only the lower part needs to be removed from the cold trap to drain the condensate. The KF NW 50 connector is secured with a quick-release fastener.

Technical data

Cold traps complete without CO2 grid
