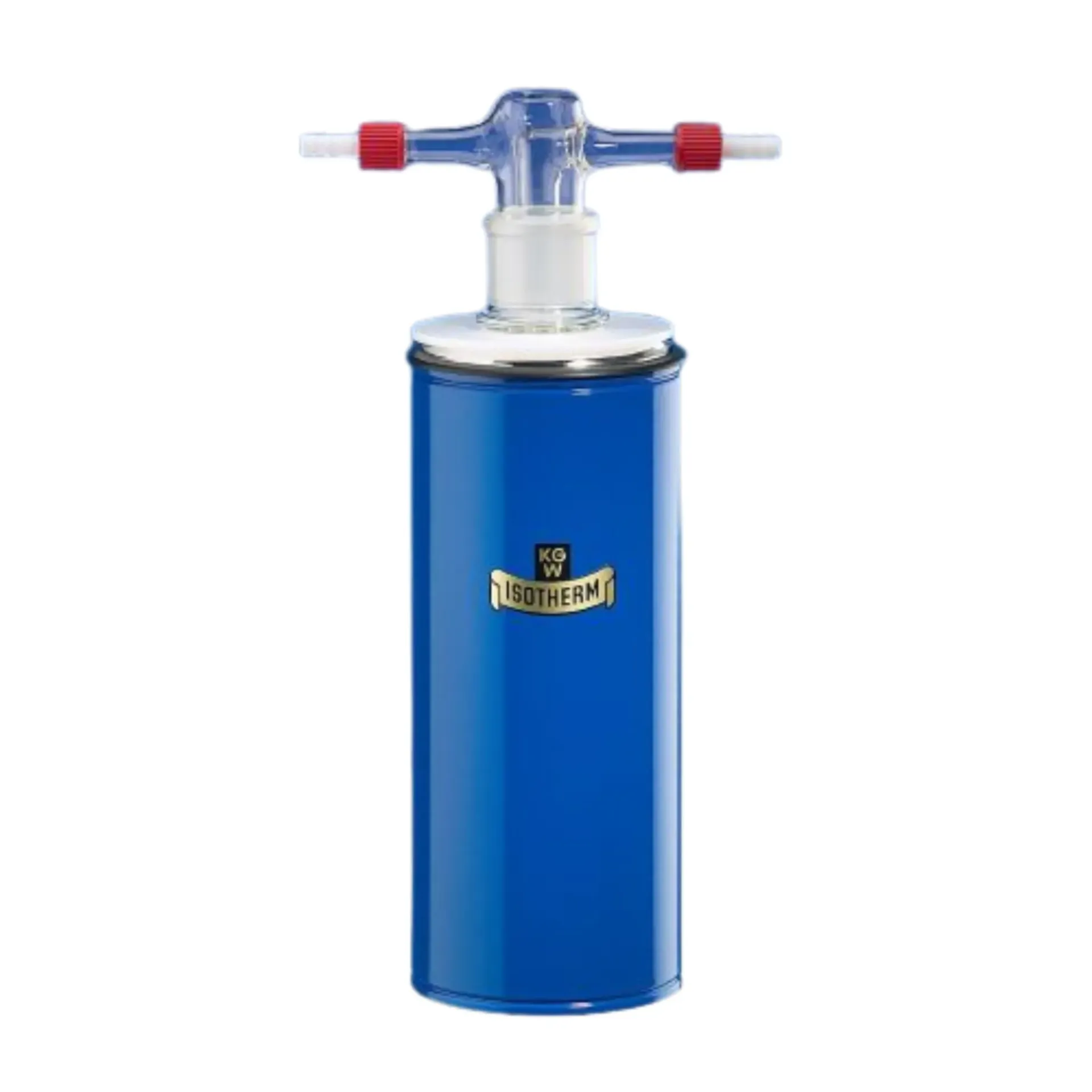

Type KF 29-K-Z

Technical data sheet

Cold trap catalog

Application

Gas purification by condensation, e.g. in vacuum systems

Advantages

made of borosilicate glass3.3
High chemical resistance
High thermal resistance
Simple, cost-effective design
Quick change possible
two-part

Executions

K = spherical ground joint S29
OK = spherical ground joint S29 with O-ring seal
GL= Glass thread with olive GL18
NW= Vacuum flange
Special dimensions
Special connections

Simple cold traps, also known as cold fingers, are for standard applications in conjunction with vacuum pumps. Moisture or solvents are condensed out in the chemical application area. The cold trap is used to protect the vacuum pump. The special feature of this design is that the user does not need a tripod to hold the cold trap. The cold trap has a bead with which it is hooked into the support ring of the Dewar flask. The cold trap can therefore be changed quickly and easily. LN2 or CO2 is used for cooling. The coolant should be at least 50°C colder than the condensation temperature of the substance.
